Clamps

Hydroll clamps are used to mount all types of accumulators safely and simply into position. A suitable clamp has been designed for every accumulator type.

A clamp’s task is:

To keep the accumulator in position
To carry the weight of the accumulator

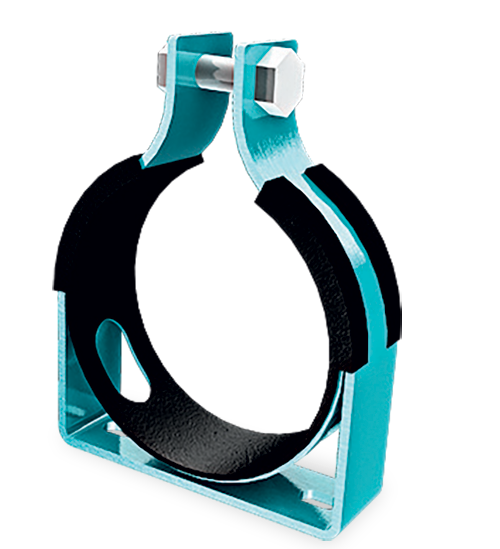

Hydroll_clamp-1

1

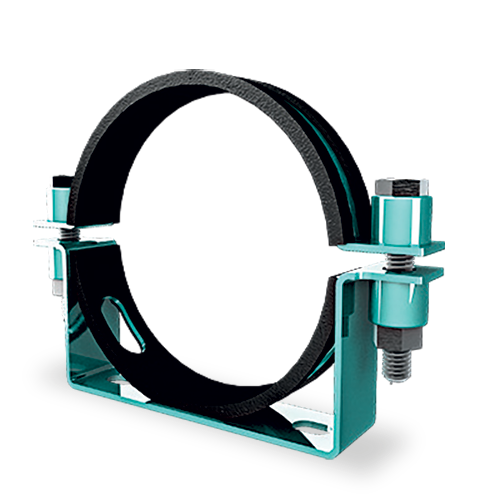

Hydroll_clamp-2

2

Product name	Suitability for cylinder diameters	Kg	Height mm	Material thickness	Weight mm	Model number *
HP Clamp 60	58mm-62mm	0.3	100	3mm	80	1
HP Clamp 90	85mm - 92mm	0.45	140	3mm	110	1
HP Clamp 95	92mm - 98mm	0.45	140	3mm	110	1
HP Clamp 95-2	90mm - 100mm	0.8	120	3mm	170	2
HP Clamp 120	110mm - 125mm	0.9	145	3mm	200	2
HP Clamp 120 Heavy	110mm - 125mm	1.1	145	5mm		2
HP Clamp 165	155mm - 165mm	1.2	205	3mm	245	2
HP Clamp 185	170mm - 185mm	1	220	3mm	255	2
HP Clamp 185 Heavy	170mm - 185mm	1.3	220	5mm	270	2
HP Clamp 205	195mm - 205mm	1.5	230	3mm	291	2
HP Clamp 205 Heavy	195mm - 205mm	2	230	5mm	295	2
HP Clamp 230	220mm - 230mm	1.8	270	3mm	310	2
HP Clamp 300	280mm - 300mm	2	325	3mm	365	2

* Model 1 = one-piece, Model 2 = two-piece
